What Is the CEIA PMD2?

Heavy-Duty Multi-Zone Metal Detector for Demanding Sites

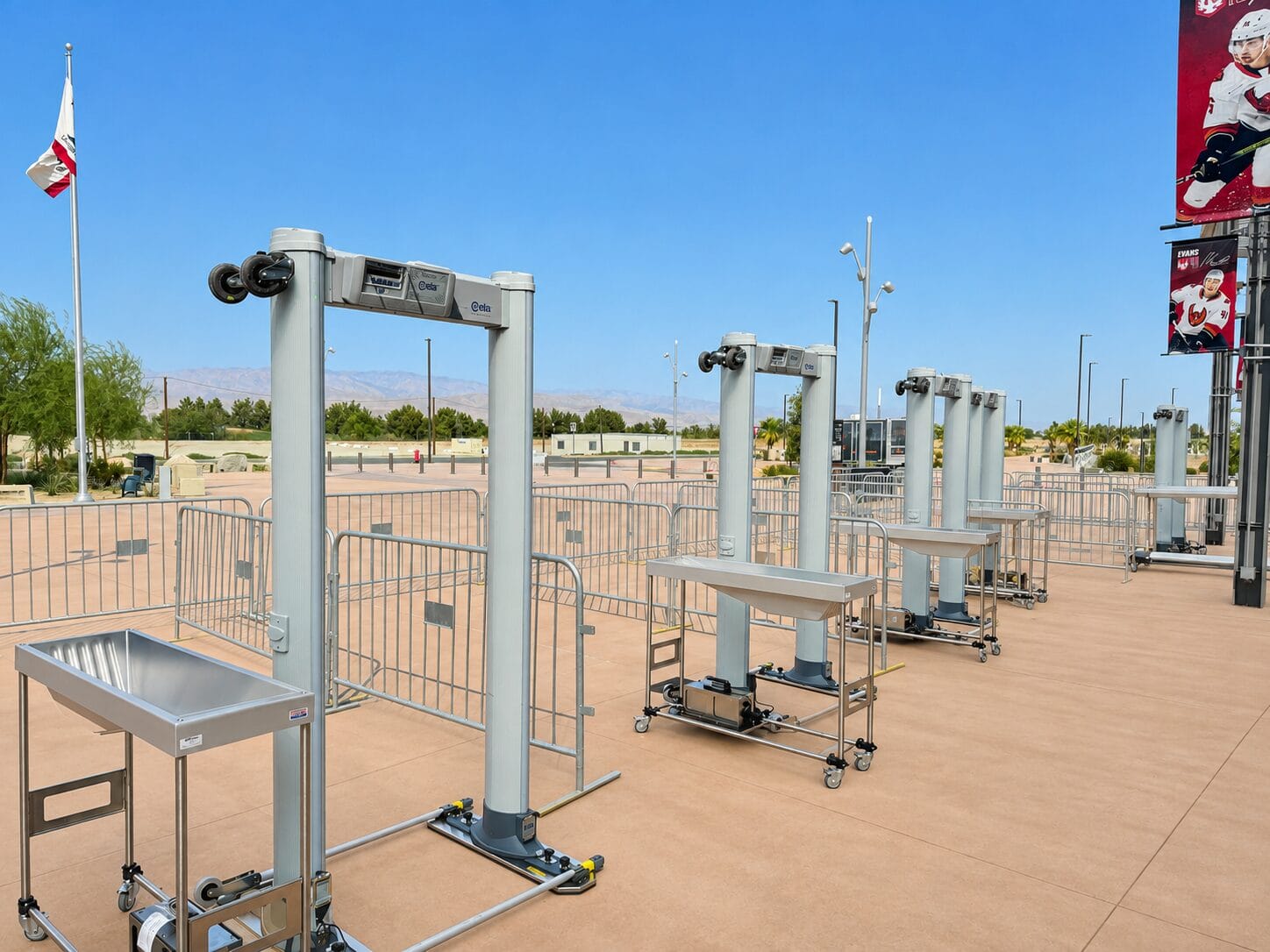

The CEIA PMD2 Plus/EZHD is built around an elliptic gate designed for checkpoints that take a beating: outdoor events and temporary posts. 60 localization zones and Met-Identity technology pinpoint the location of a metallic item on the body and whether the detected item is ferrous or non-ferrous, while a low nuisance alarm rate keeps lines short even at the toughest security settings. Its antivandalic IP66 control unit shrugs off rain, dust, and harsh weather.

CEIA PMD2

See the CEIA PMD2 Plus/EZHD

TECHNICAL SPECIFICATIONS

CEIA PMD2 Plus/EZHD
Full Spec Sheet

  • Yellow checkmark icon
    High Discrimination
  • Yellow checkmark icon
    Monolithic Construction
  • Yellow checkmark icon
    Chip Card System
  • Yellow checkmark icon
    Up to 50 Built In Programs
  • Yellow checkmark icon
    Rapid Installations
  • Yellow checkmark icon
    Randon Alarms
  • Passage Width
    28.3″ or 32.3″
  • Overall Dimensions
    44.5″/48.5″ (W) x 88.8″ (H); 81.4″ H on the EZHD-N navy version
  • Localization Zones
    60 total (20 vertical x 3 lateral), covering shoe level to crossbar
  • Security Programs
    Up to 50 built-in (30 international standards, 20 customizable)
  • Alarm Signaling
    4 programmable multi-zone display bars, 10 tones plus 34 special sounds, 10 volume levels
  • Detection Speed
    Up to 50 ft./sec, with reset time as fast as 0.2 seconds
  • Communication
    BT, infrared, and RS-232 standard; USB and Ethernet available via APSiM2 Plus/E
  • Control Unit Rating
    IP66 (IEC 60529), antivandalic polymer housing
  • Power Supply
    100-277V AC +/-10%, 47-63Hz, 40VA typical
  • Operating Temp
    -4°F to 149°F (-34°F to 158°F upon request)
  • Storage Temp
    -34°F to 158°F
  • Humidity
    0-95% relative humidity, without condensation
download full spec sheet (pdf) Request a Technical Consultation
AutoClear 6040
Proven Performance

Built for Frequent
Relocation & Continuous Duty

01

Precise Detection

The CEIA PMD2 Plus/EZHD scans the body across 60 localization zones, 20 vertical and 3 lateral, for full coverage from the shoe line up to the crossbar.
02

Fewer False Alarms

High discrimination technology lets people keep belts, coins, and keys on during screening, reducing unnecessary alarms.
03

Ready for Frequent Relocation

The CEIA PMD2 Plus/EZHD features military-grade metal connectors for quick assembly and teardown.
04

Certified Immunity to Interference

The CEIA PMD2 Plus/EZHD carries certified immunity to environmental interference to deliver accurate performance regardless of the venue.
05

Tool-Free Setup in Minutes

One-touch guided automatic installation (OTS) enables fast setup, while continuous self-diagnostics help verify reliable system performance before deployment.
06

Precise Transit Counting

As a high-sensitivity walk-through metal detector, it tracks inbound and outbound traffic with a precision two-beam counter.
Security Detection Solutions INstall Offerings

Everything You Need for Enhanced Walk-Through Metal Detector Screening

Delivery & Setup

The CEIA PMD2 Plus/EZHD can ship direct to your location or we can delivery to our closest regional office for our technician to bring to your location.

No need for semi truck deliveries and off loading in congested areas with our SDS delivery options.

On-Site Setup & Calibration

Our certified technicians handle assembly, security-level calibration, and pre-deployment testing, confirming the gate meets your chosen standard before the first person walks through.

Dedicated On-Site Technician

For larger deployments, an on-site technician monitors performance, supports your screening staff, and troubleshoots on the spot, keeping your walk-through metal detector running when it matters most.

Full Operator Briefing

Before your checkpoint opens, we train your screening staff on alarm response, security settings, and routine maintenance, so they’re ready from the first person through.

get a quote
AutoClear 6040
Frequently Asked Questions

CEIA PMD2 Plus/EZHD FAQs

Browse answers to frequently asked questions about our equipment and services.
What does the CEIA PMD2 Plus/EZHD detect?

This enhanced walk-through metal detector is designed to detect firearms, knives, and other concealed metallic threats.

Its Met-Identity technology also distinguishes between ferrous and non-ferrous metals, helping operators assess potential threats more quickly.

Where are CEIA PMD2 Plus/EZHD units commonly installed?

They usually show up at government buildings, courts, prisons, schools, nuclear facilities, cruise ships, data processing centers, and large public events such as concerts and amusement parks, wherever a checkpoint needs equipment that can handle heavy, repeated use.

Can the PMD2 Plus/EZHD be installed outdoors?

Yes. Its antivandalic IP66 control unit is waterproof and dustproof, and an optional elliptic gate protective cover adds extra protection for permanent outdoor installations.

Does the PMD2 Plus/EZHD need regular recalibration?

No. It uses continuous self-diagnostics to maintain reliable operation, reducing routine maintenance by eliminating periodic recalibration and preventive maintenance.

Is the PMD2 Plus/EZHD compliant with international security standards?

Yes. It’s certified to the applicable Enhanced Metal Detector standards and complies with international requirements for electromagnetic exposure, pacemaker safety, and airport security screening.
